Notable Patents on Antenna Design

Zeppelin Antenna

German Patent Number: 225204
                Year: 1909
            Inventor: Hans Beggerow
   Original Document: German Patent Number 225204

Claim (translated from the original German): Airborne wiring diagram, marked by two dangling wires of unequal length, which in the vicinity of the airship form a Lecher system.

Beverage Antenna

 US Patent Number: 1381089
             Year: 1920
         Inventor: Harold H. Beverage
Original Document: US Patent Number 1381089

Excerpt: In carrying my invention into effect I make use of a horizontal preferably aperiodic antenna extending in a direction parallel to the direction of transmission of the signals to be received. This antenna is constructed with distributed capacity inductance and resistance of such values that the currents produced therein by the desired signals increase progressively from the end of the antenna nearest the transmitting station becoming in the preferred case, the maximum at the end farthest from the transmitting station.

Franklin Antenna

British Patent Number: 242342
                 Year: 1924
             Inventor: Charles Samuel Franklin
    Original Document: British Patent Number 242342

Abstract: In order to secure a pronounced directional effect from aerials of the type that are electrically long in comparison with the signal wavelength, provision is made for suppressing radiation from every alternate half wavelength of the stationary-wave formation along the aerial. Fig. 2 shows, for example the normal conditions existing along an aerial A one-and-a-half times the signal wavelength, the stationary- wave formation being shown by the curve B, whilst the polar diagram of radiation is illustrated by the six-point curve C. By doubling back on itself the central stationary-wave segment of the aerial, the resultant polar curve is altered to the form shown in Fig. 3. Alternatively, the doubled-back portion may be replaced by an electrical equivalent, such as an inductance coil with or without a parallel condenser, substantially tuned to the fundamental wavelength. The longer or higher the aerial, modified in this manner, the sharper is the directional effect. The invention may be applied to aerials of the type described in Specification 226,246.

Yagi-Uda Antenna

Japanese Patent Number: 69115
                  Year: 1926
             Inventors: Hidetsugu Yagi and Shintaro Uda
     Original Document: Japanese Patent Number 69115, page 1

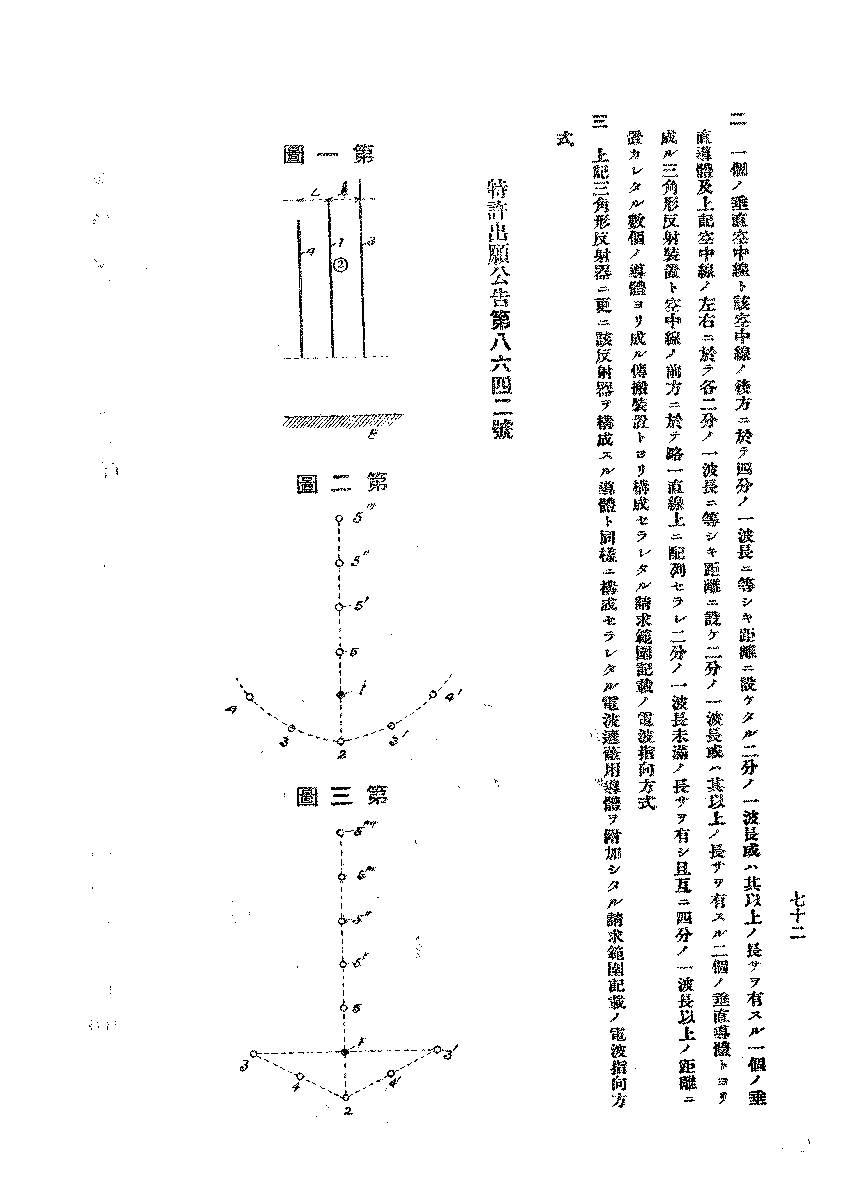

                        Japanese Patent Number 69115, page 2

The Yagi antenna is an array of dipoles coupled by electric and magnetic fields. It was effectively used by the allies in World War II as a radar antenna and then saw widespread use throughout the world as a television receiving antenna. This remarkable structure allows the elements to be combined into a high-gain, unidirectional array without interconnecting feed lines. Each element is a continuous piece of metal without an insulator in the center, providing high strength and simple construction. The antenna also has very low weight and wind load compared to its gain. (My thanks to Harry Hsieh, a patent engineer in Taiwan, for obtaining the original patent document.)

Bruce Antenna

 US Patent Number: 1813143
             Year: 1927
         Inventor: Edmond Bruce
Original Document: US Patent Number 1813143

Excerpt: Because of the physical dimensions of the antenna, energy supplied thereto by a local source for radiation, or derived from a wave incident thereupon, produces in the active elements currents which are in phase with each other.

Sterba Antenna

 US Patent Number: 1885151
             Year: 1929
         Inventor: Ernest J. Sterba
Original Document: US Patent Number 1885151

Excerpt: It is one object of this invention to transmit or receive radio frequency waves with greater directivity in the earth's plane than heretofore practiced. It is another object of this invention to transmit or receive radio frequency waves in an extremely low-lying angle of projection. By means of the invention the above two objects may be achieved jointly so as to make possible a remarkably close approach to the theoretical ideal of point-to-point communication in which all the transmitted energy is utilized at the related receivers. It is still another object of this invention to transmit energy between the antenna elements and their associated translating apparatus with comparatively less energy loss and in a more simple and inexpensive manner than heretofore done.

sterba curtain antenna

Rhombic Antenna

 US Patent Number: 2285565
             Year: 1931
         Inventor: Edmond Bruce
Original Document: US Patent Number 2285565

Excerpt: An object of the invention is to render directive antennae capable of effective operation over a considerable range of wave lengths. Another object is to secure a relatively high angle of reception or emanation. An additional object of the invention is to enable an antenna to have a sharp selectivity. A further object is to economize in the cost of supporting structures as compared with that of previous antennae of similar directional characteristics. A still further object of the invention is to discriminate against undesired horizontally projected energy.

Turnstile Antenna

 US Patent Number: 2086976
             Year: 1935
         Inventor: George H. Brown
Original Document: US Patent Number 2086976

Excerpt: I am aware that vertical antenna systems of a height not exceeding a half wavelength may be used for horizontal radiation. Such systems are satisfactory for long wavelengths but are defective for short waves. It has been proposed to reverse phases between alternate half wave sections and thereby permit a plurality of half wavelength sections to be employed. An antenna system of several half wave sections offers practical difficulties in the matter of separately insulating the sections. It has also been proposed to employ horizontal antenna elements with insulated masts and phase adjusting circuits, but such systems offer serious structural and electrical difficulties. The novel arrangement which I propose may be used to overcome these difficulties and at the same time improve the radiating efficiency.

Folded Dipole Antenna

 US Patent Number: 2283914
             Year: 1937
         Inventor: Philip S. Carter
Original Document: US Patent Number 2283914

Excerpt: Although the dipole has a sufficiently broad tuning characteristic to give satisfactory transmission and reception over a band of frequencies such as may be used in television, it has been found that when this type of half wave antenna is matched to the transmission line in any of the known ordinary ways (as by the use of shunt impedance elements, or fanning and tapping of the transmission lines, or by the use of the quarter wave section of line) the tuning characteristic of the dipole is made very much narrower and is insufficient for the band of frequencies now generally used for television purposes. As a result of tests made on half wave dipoles, the conclusion was reached that the desired flat impedance versus frequency characteristic over a broad range must be obtained without the use of the usual impedance matching circuits between the antenna and the transmission line.

Coaxial Antenna

 US Patent Number: 2184729
             Year: 1937
         Inventor: Arnold B. Bailey
Original Document: US Patent Number 2184729

Excerpt: One object of this invention is to produce an undistorted radio field of maximum intensity. Another object of this invention is to eliminate radiation from a transmission line and other auxiliary apparatus associated with an antenna system. Still another object of this invention is to secure, in practice, an antenna directive characteristic which is the same as the corresponding theoretical characteristic. A further object of this invention is to prevent, in a coaxial line system, the establishment of currents on the outer surface of the sheath.

Butterfly Dipole Antenna

 US Patent Number: 2175253
             Year: 1938
         Inventor: Philip S. Carter
Original Document: US Patent Number 2175253

Excerpt: The present invention relates to a short wave antenna system and has for one of its objects to provide a simple form of short wave antenna which has an impedance versus frequency characteristic considerably wider than that of a simple dipole type of antenna.

Slot Antenna

 British Patent Number: 515684
                  Year: 1938
              Inventor: Alan Dower Blumlein
     Original Document: British Patent Number 515684

Abstract: A high-frequency transmission line, which also acts as a radiator, consists of a metal conducting tube 1, Fig. 1, of copper with a longitudinal slot 2. The tube forms a "channel for the transmission of magnetic flux," and is equivalent to a line having inductance in series, and shunted by elements of inductance and capacity in parallel. High-frequency signaling currents may be fed to the line by a coil 4, or by leads 4a connected across the slot, and are taken off by a coil 5. Flux leakage across the slot may be regulated by a plate 6, Fig. 2. Or the size of the slot may be adjusted, in order to tune the line to the working frequency, as shown in Figs. 3 and 5. The tube may be used as a transmitting aerial, giving maximum radiation at right-angles to its length, and comparatively little radiation axially. It is equivalent to a single-turn loop or frame, one wavelength long. The feed may be central or at one end. As shown in Fig. 6, the tube 7 is supported at voltage nodes 9 from a hollow mast 8, and is fed with signal energy at points 10, 11, half a wave length apart, from leads which are led up through the mast as shown in Fig. 7. A tube with a diameter of from six to twelve inches is suitable for transmitting a wavelength of 5 meters, though tubes of greater diameter, provided with more than one slot, may be used for covering a wide frequency-range.

Corner Reflector Antenna

 US Patent Number: 2270314
             Year: 1940
         Inventor: John D. Kraus
Original Document: US Patent Number 2270314

Excerpt: The use of reflecting surfaces to direct the waves from or to an antenna is old.

Discone Antenna

 US Patent Number: 2368663
             Year: 1943
         Inventor: Armig G. Kandoian
Original Document: US Patent Number 2368663

Excerpt: In keeping with progress made during the last few years in the development of ultra-high frequency radio technique, and applications thereof to aircraft communication, direction finding, and so forth, it has become necessary to develop special antennas and antenna systems suitable for installation on such aircraft. Flying conditions are such that these antennas must necessarily be small and rigid in their construction and also offer a minimum of wind resistance, in order that the flying efficiency of the aircraft will be unimpaired. In accordance with my invention I have provided a small rigid antenna suitable for mounting on the surface of the fuselage or other component of the airplane structure and in certain embodiments I have also provided a streamlined protecting shield or housing covering or so cooperating with the construction of the antenna system as to greatly reduce wind resistance. This housing preferably takes the form of a "blister" which is only slightly elevated from the normal surface of the aircraft on which it may be installed.

Batwing Super-Turnstile Antenna

 US Patent Number: 2480153
             Year: 1945
         Inventor: Robert W. Masters
Original Document: US Patent Number 2480153

Excerpt: This invention relates to radio antennas, and more particularly to broadband antenna systems having vertical directivity, whereby the principle radiation or response may be substantially confined to a horizontal plane. Such antennas are particularly useful in the transmission and reception of television signals, in blind-landing systems and other high frequency radio beacon systems for aircraft and the like.

Quad Antenna Element

 US Patent Number: 2537191
             Year: 1947
         Inventor: Clarence C. Moore
Original Document: US Patent Number 2537191

Excerpt: In certain parts of the world, where elevations above sea level are great, as for example, in many parts of South America, the corona problem is particularly bad even at relatively low values of power radiated. It would be desirable to provide an antenna wherein the corona problem would be substantially eliminated at all altitudes and also where large amounts of radio frequency power are to be radiated. It would furthermore be desirable to provide an antenna in which the voltage problem was eliminated so that the expense of insulators for supporting the same could be greatly reduced and whereby ice and snow would have substantially no deleterious effect as far as the operating characteristics of the antenna are concerned.

Heliwhip Antenna

 US Patent Number: 2966679
             Year: 1957
         Inventor: Edward F. Harris
Original Document: US Patent Number 2966679

Excerpt: My invention relates to an improved helical antenna having small length in relation to the wave length of the radiated energy and characterized by a highly favorable current distribution and radiation resistance without the use of massive loading elements on the antenna structure.

Log Periodic Antenna

 US Patent Number: 2985879
             Year: 1958
         Inventor: Raymond H. Du Hamel
Original Document: US Patent Number 2985879

Excerpt: It is known that an antenna whose geometry is described completely by angles, such as an infinite biconical antenna, would make an ideal broadband radiator since its operation is theoretically completely independent of frequency. The theoretical performance of the infinite biconical antenna is not achieved in practice, however, since such an antenna must be of finite length, and the "end effect," i.e., the effect of finite rather than infinite length, leads to radiation characteristics showing considerable variation with frequency. A planar antenna closely related to the biconical antenna (the "bow-tie" antenna) is likewise theoretically frequency-independent when infinite in size. The "end effect" of an actual bow-tie antenna, however, limits the range of frequencies for which the radiation pattern is essentially constant to a bandwidth of 2 or 3 to 1.

The present invention concerns modified planar "bow-tie" antennas in which the "end effect" has been reduced to such an extent as to permit bandwidths of 10 to 1 or more to be achieved with structures of practical size. In general, this effect is achieved by introducing periodic discontinuities along the marginal edges of the bow-tie antenna, the geometry of the discontinuities being such that all dimensions involved are directly proportional to the distance from the feed point of the antenna, i.e., the vertex or the narrowest portion of the "bow-tie."

Backfire Antenna

 US Patent Number: 3122745
             Year: 1959
         Inventor: Hermann W. Ehrenspeck
Original Document: US Patent Number 3122745

Excerpt: The gain of slow wave antennas depends on the phase velocity of the surface wave traveling along it and the length of the antenna; however, for a given length there is an optimum phase velocity beyond which the gain decreases, therefore, for adjustment of antennas at optimum phase velocity, the gain becomes proportional to the antenna length.

The utilization of the concept of this invention whereby the use of a reflection arrangement to cause a traverse of at least part of the energy of an endfire slow wave array back along the array has been found to increase the effective length of the array and, therefore, cause an increase in antenna gain. The gain increase thus achieved is accomplished without extensive modification of the antenna or physically increasing the length.

Swiss Quad Antenna

 Swiss Patent Number: 384644
                Year: 1960
            Inventor: Rudolf Baumgartner
   Original Document: Swiss Patent Number 384644

Excerpt (translated from the original German): Parallel to the fed quadratic element, following the principle of the yagi antenna, a second quadratic element of somewhat larger size is erected as a parasitic reflector. This construction, shown in Fig. 5, is known by the name "cubical quad" and is becoming increasingly popular, although current construction methods, where quadratic elements are made from wire and supported by bamboo or wood, are not durable enough. Modern, all-metal construction is considerably expensive, and the metal support elements cause electrical interference.

Swiss quad antenna
